Crupi Quad Disc Brake Rear Hubs

  • Sale
  • Regular Price $269.99 USD


PRODUCT DETAILS

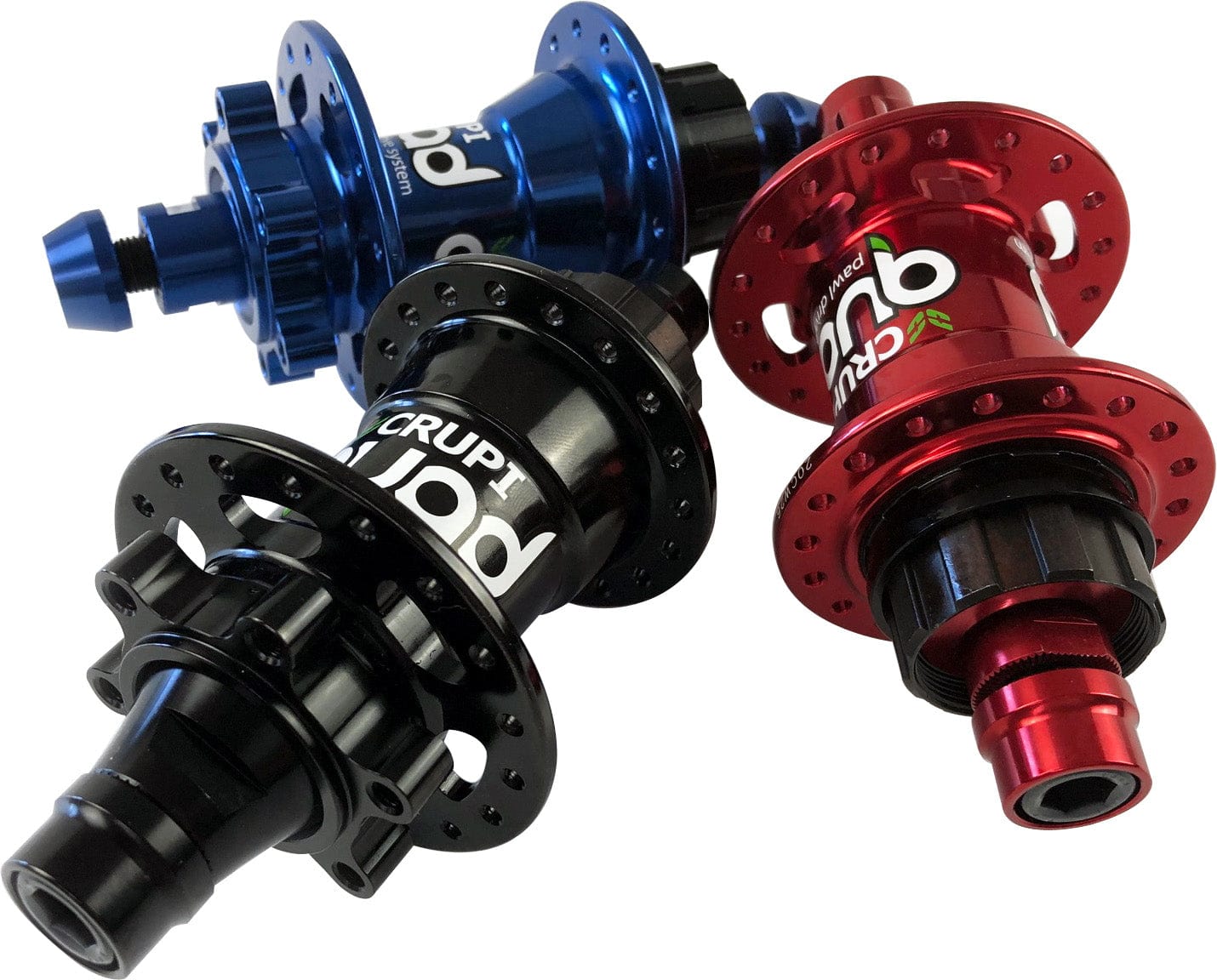

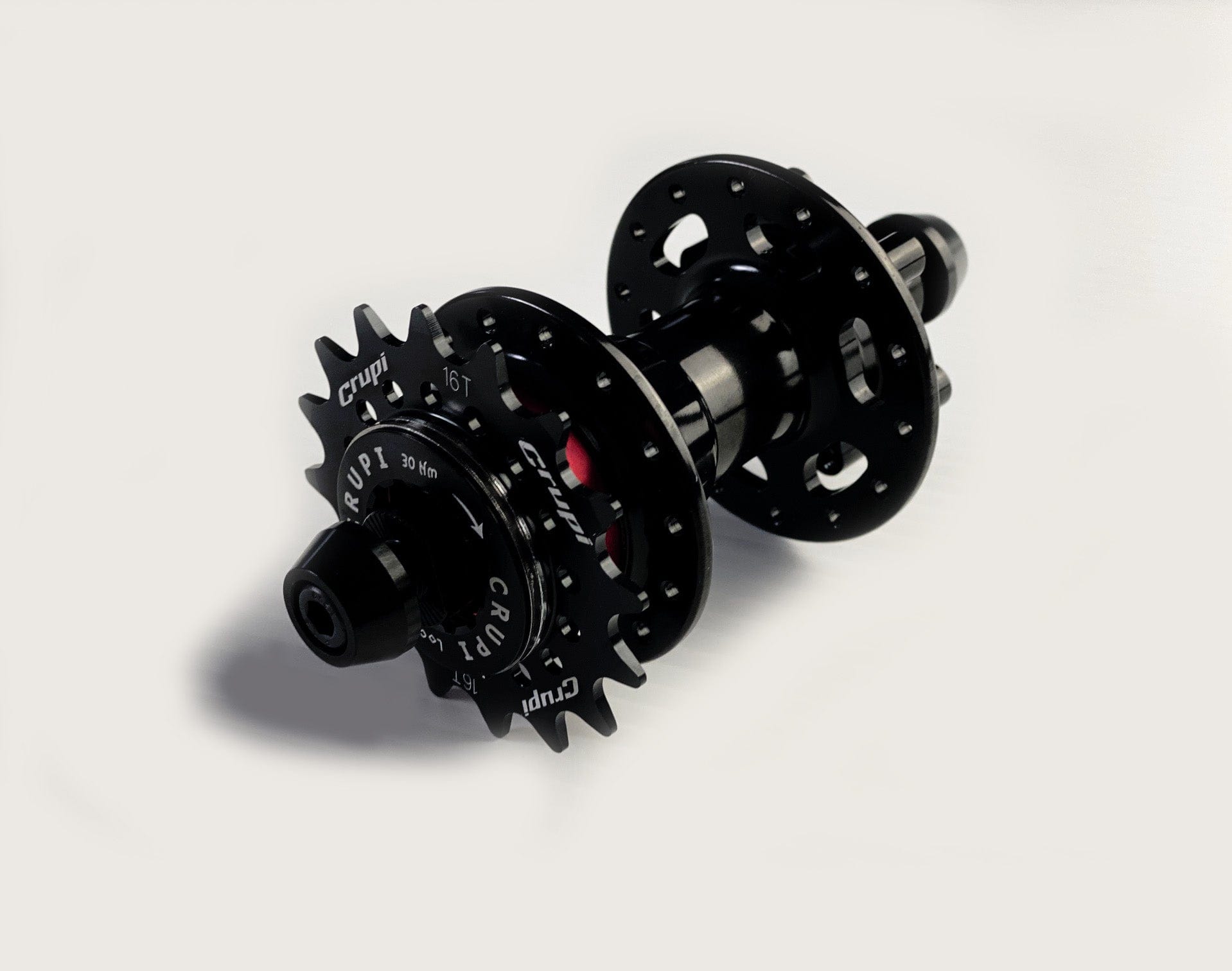

All new Crupi Quad Disc Brake hubs

The fastest Spring & Pawl Engagement System in BMX!  The Quad Hub features 150 ratchet teeth which engage every 2.4 degrees so what you get it is a super fast engaging hub.

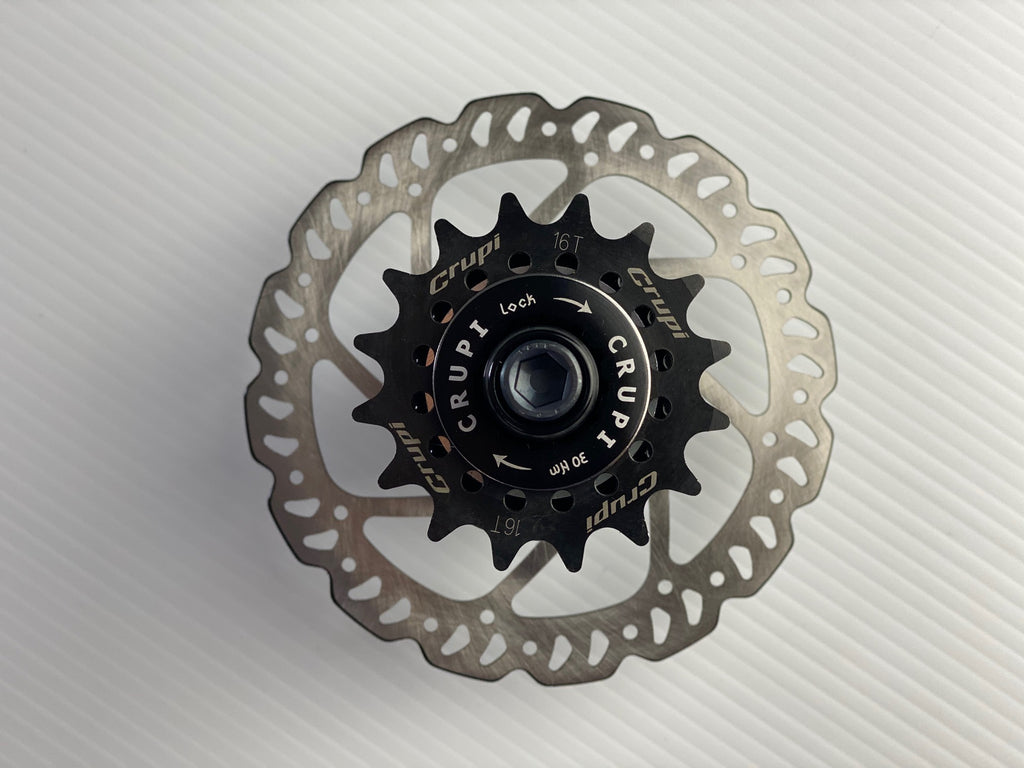

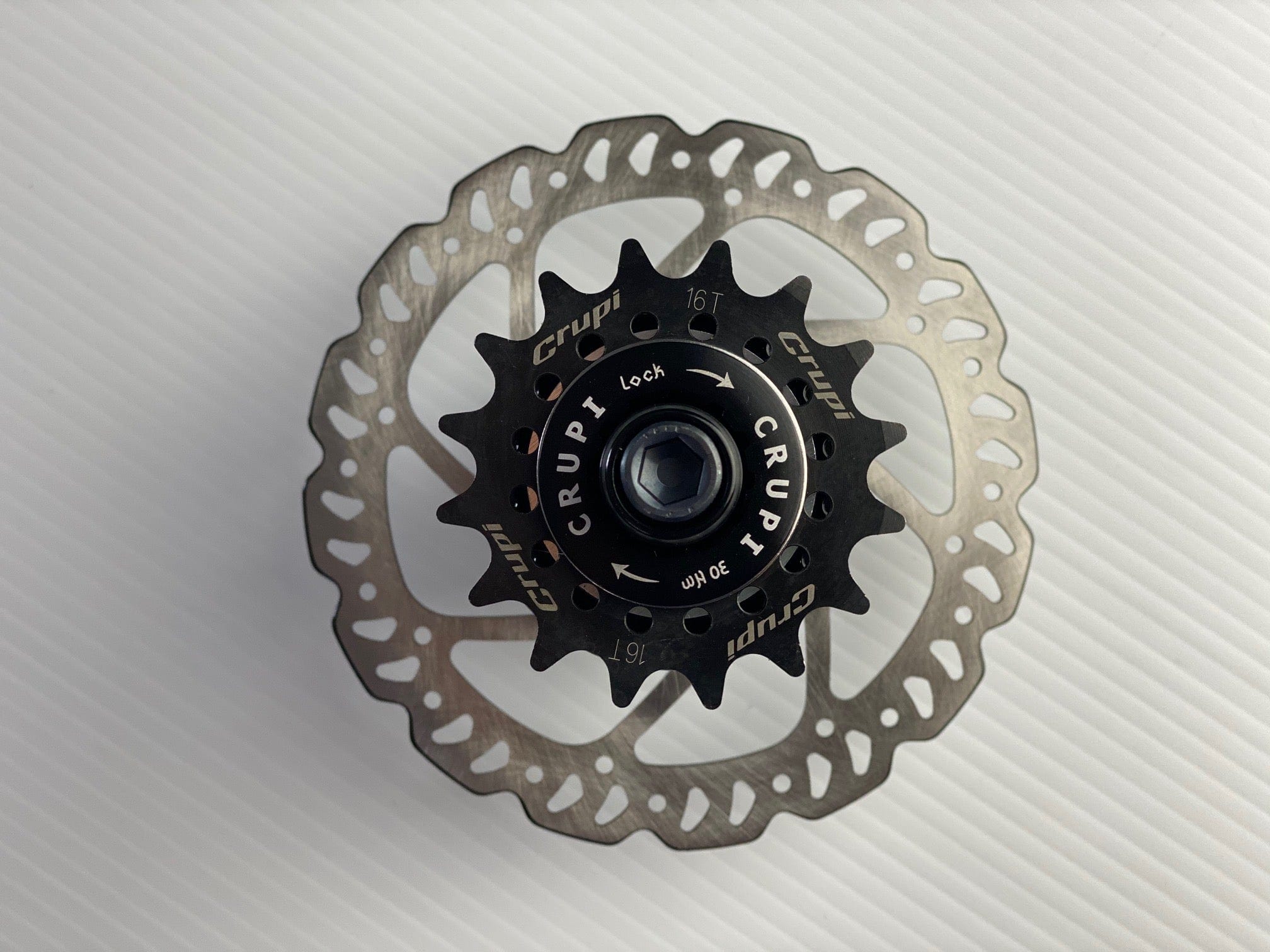

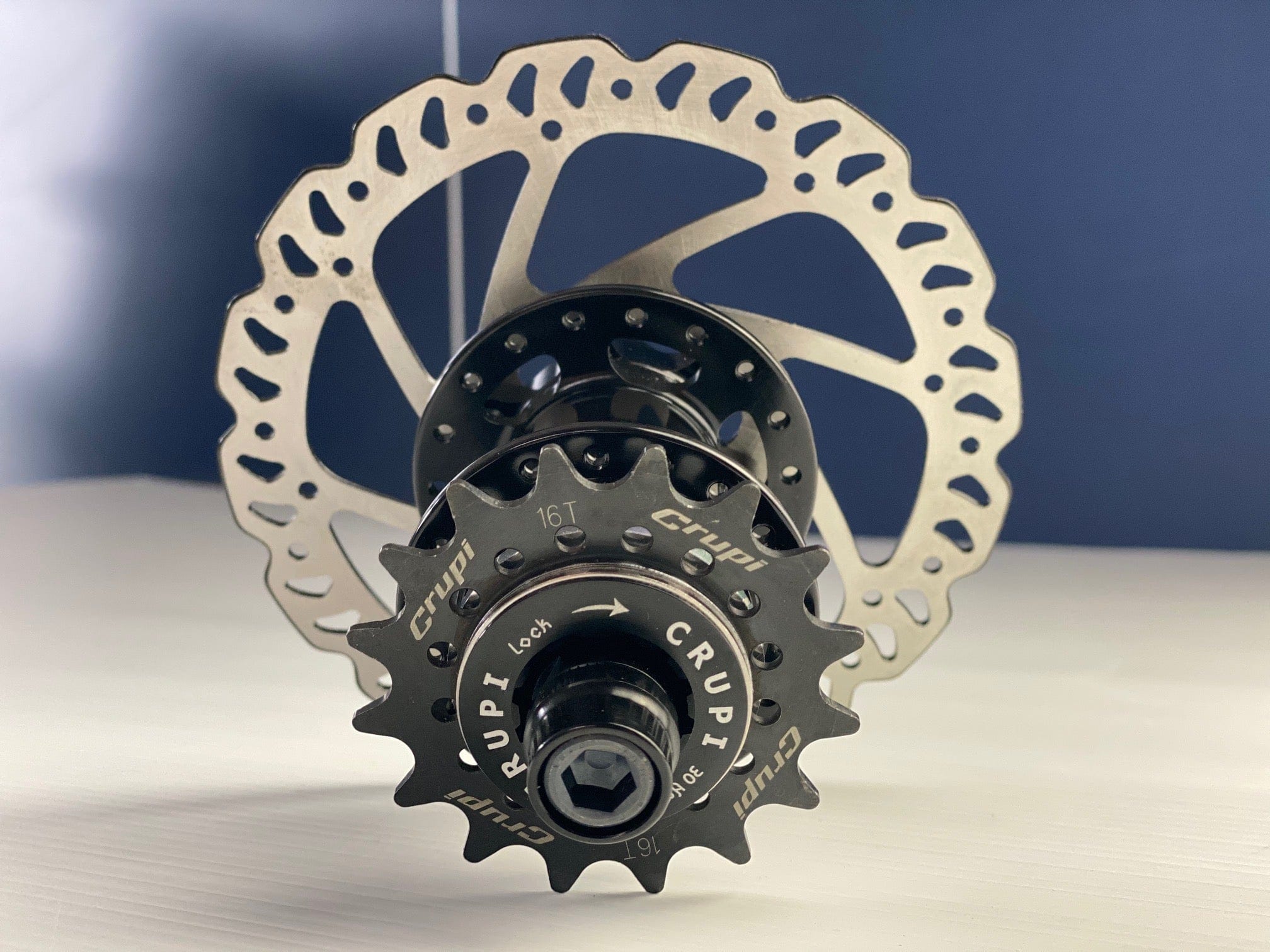

We still provide 4 cog spacers which allow you to position the cog where it provides the best possible chain alignment.  Hubset comes with a 16t cog but is designed to work with any Shimano compatible cog and any Shimano type tool will remove the cog.

  • Fixed independent leaf spring/pawl system acting simultaneously when engaged
  • Less resistance and less wear = a smoother rotating hub

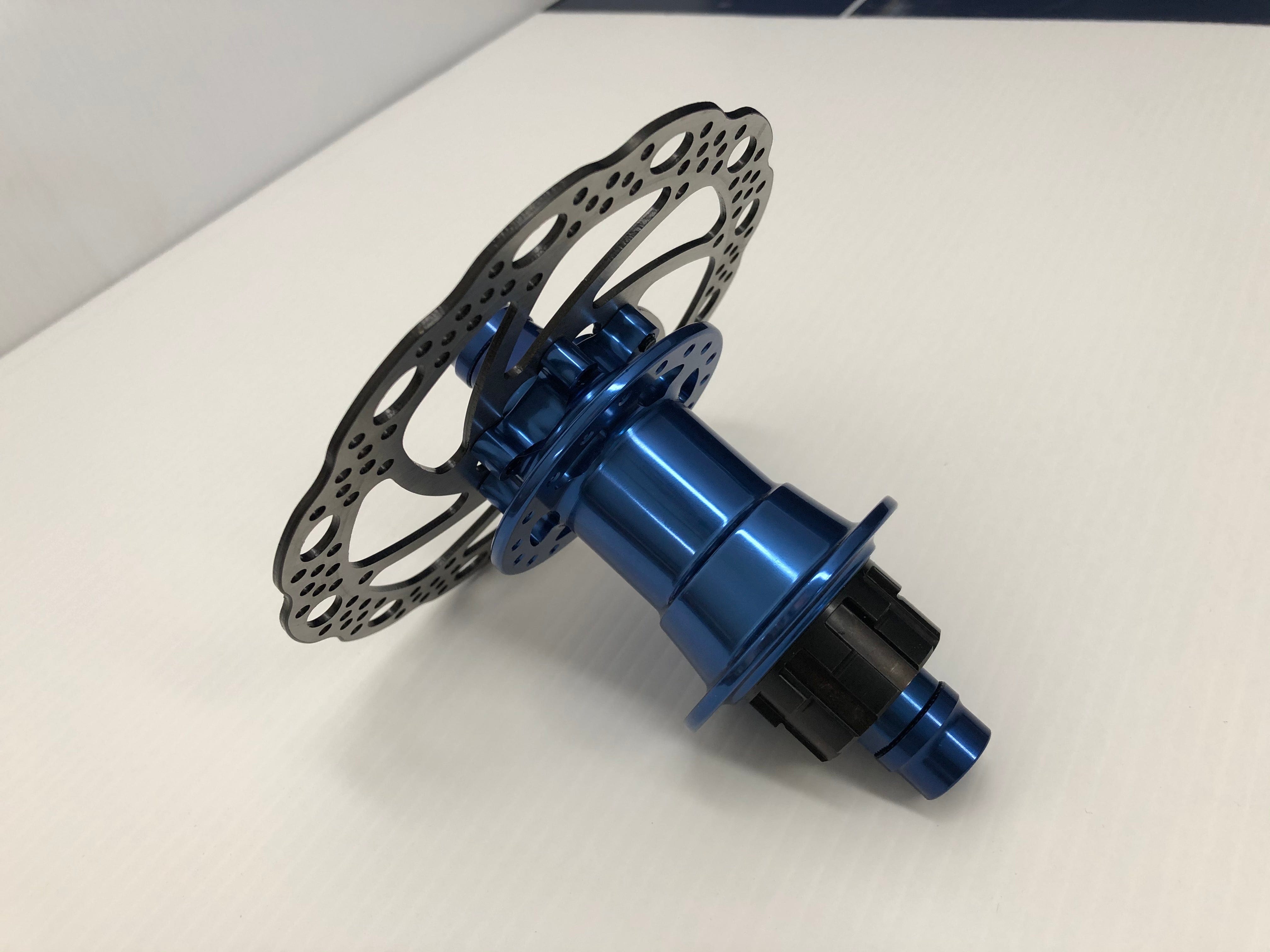

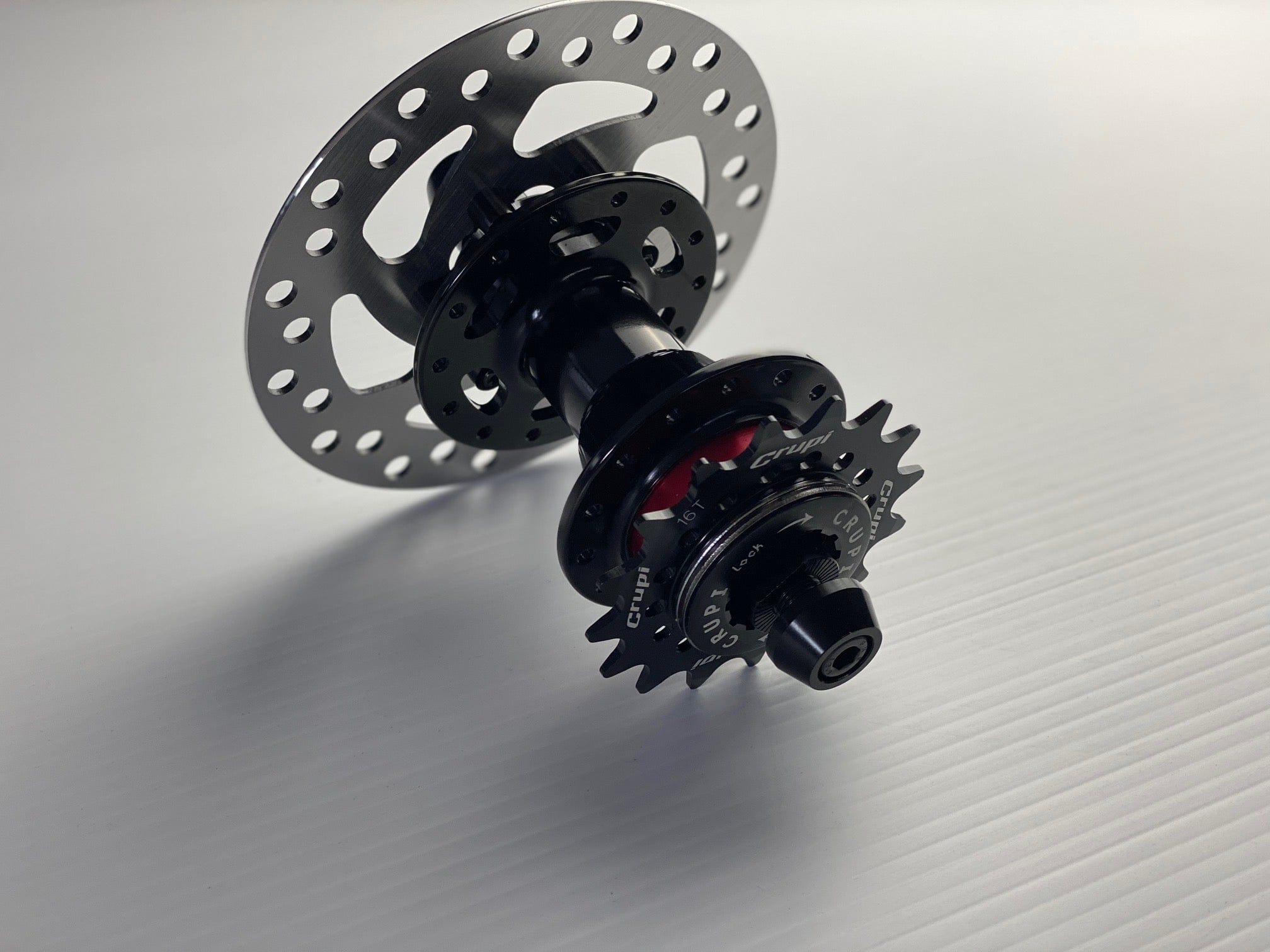

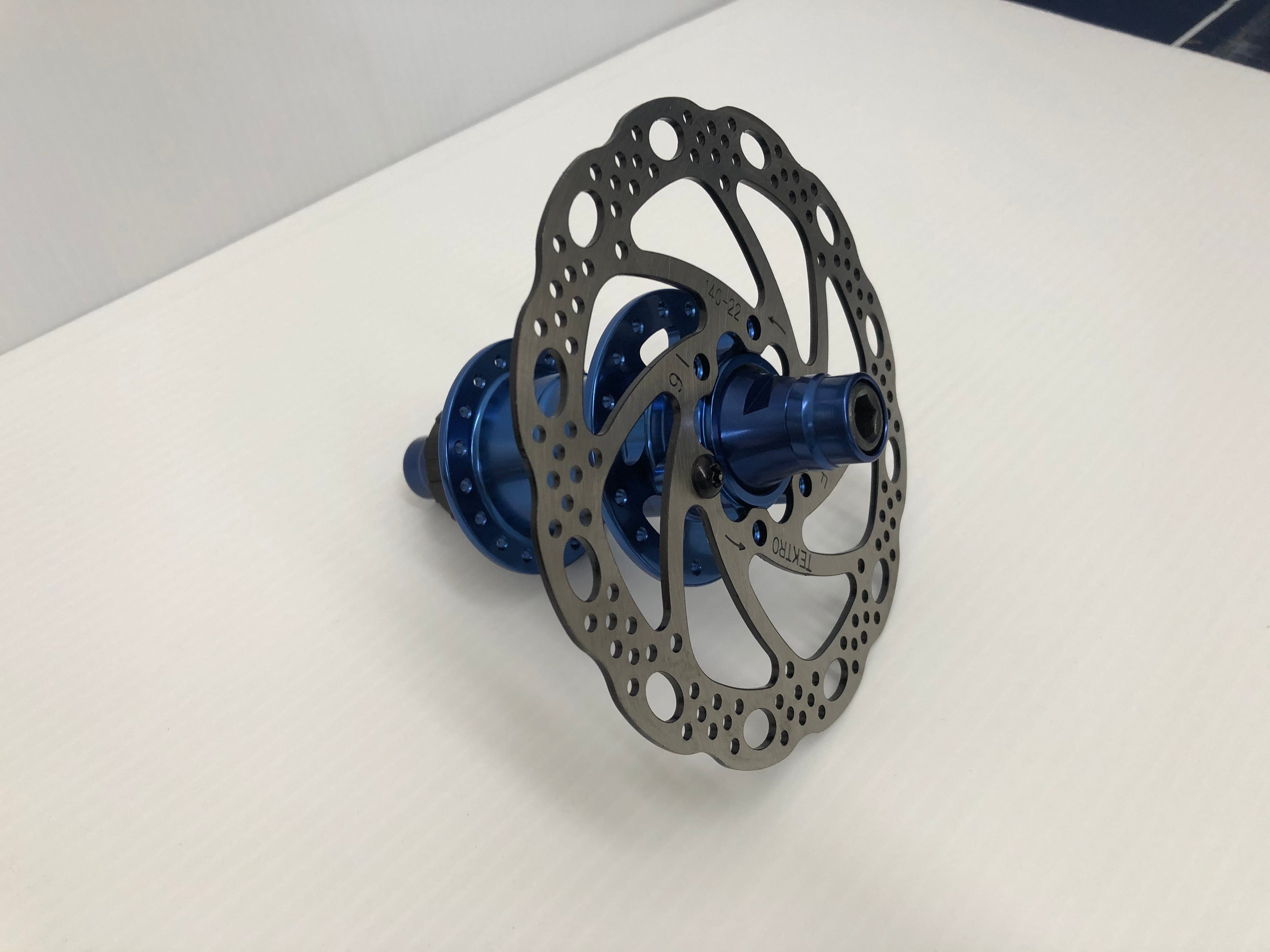

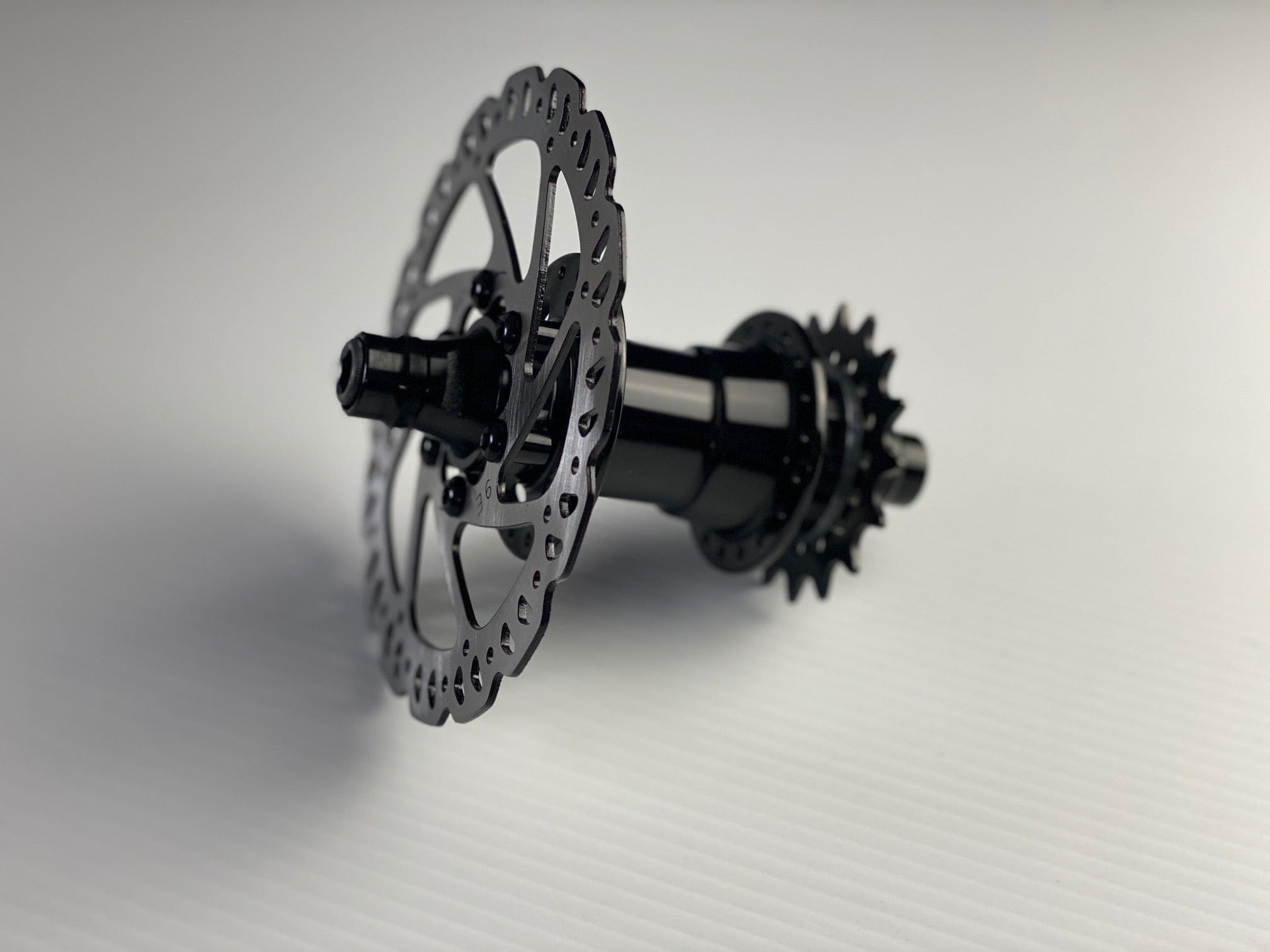

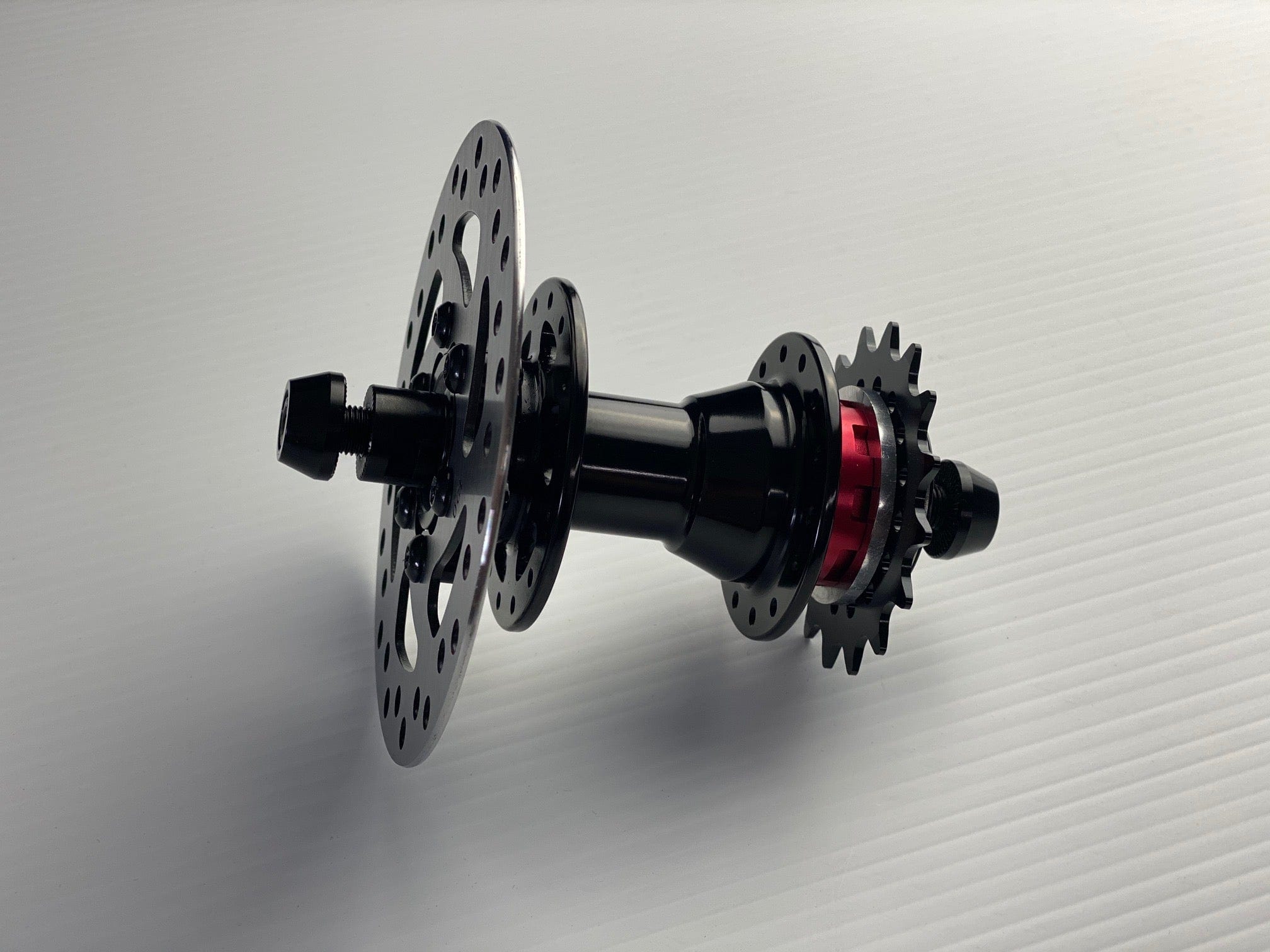

  • Requires a 6-Bolt Rotor

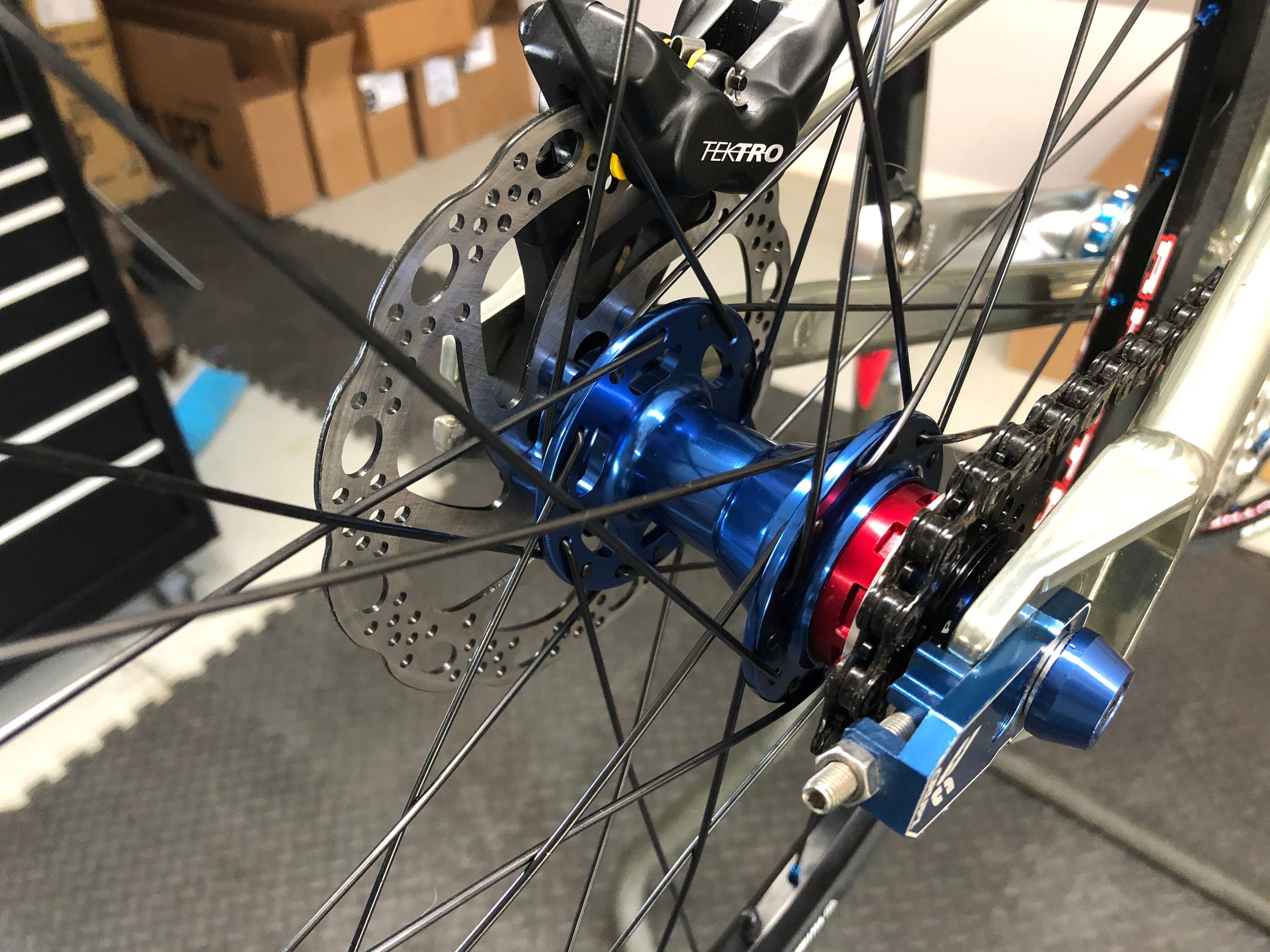

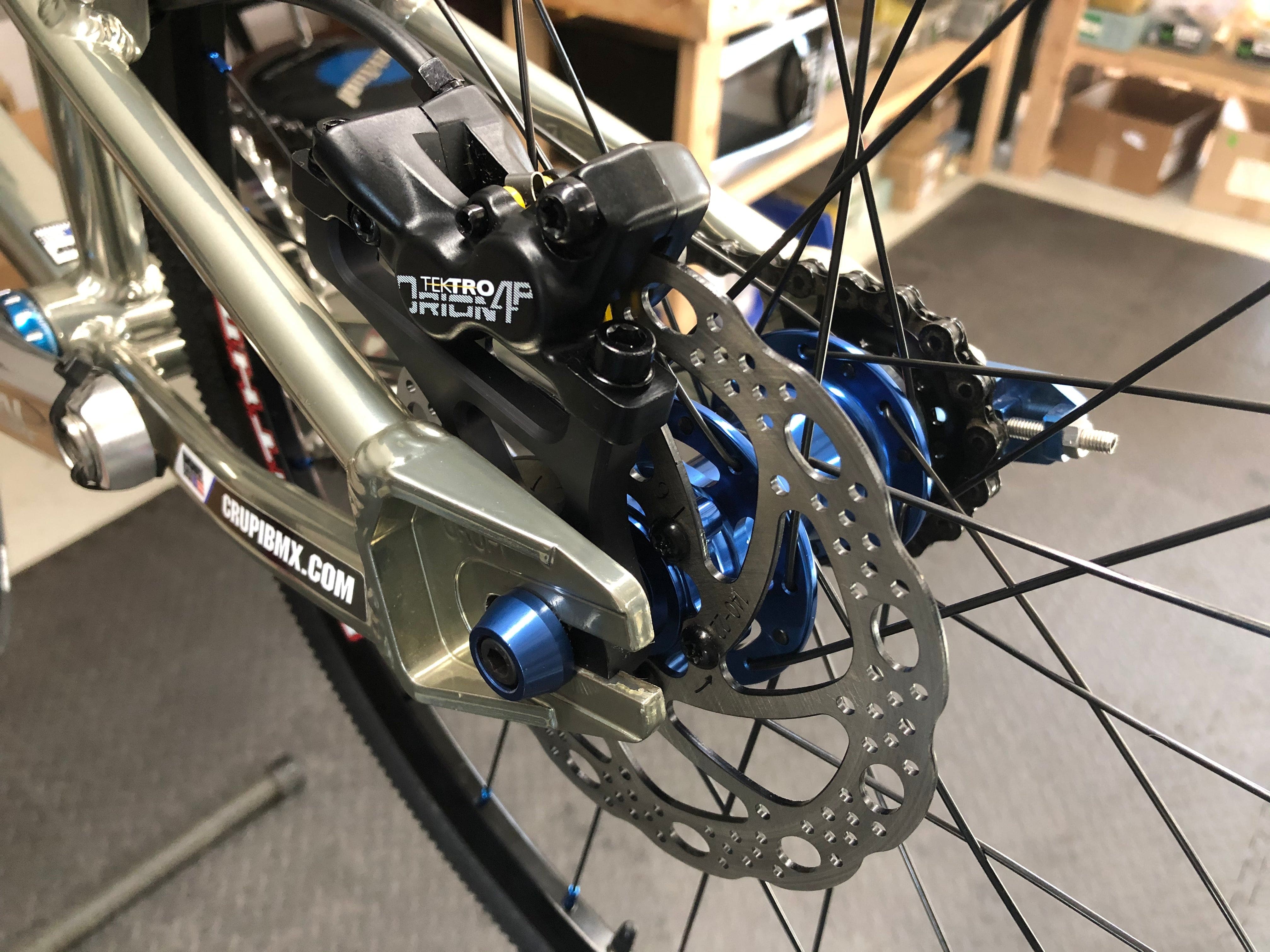

  • For use on newer Crupi frames, we recommend our adapter and a 140mm rotor
  • Axles are 10mm axles but a 20mil front option also now available

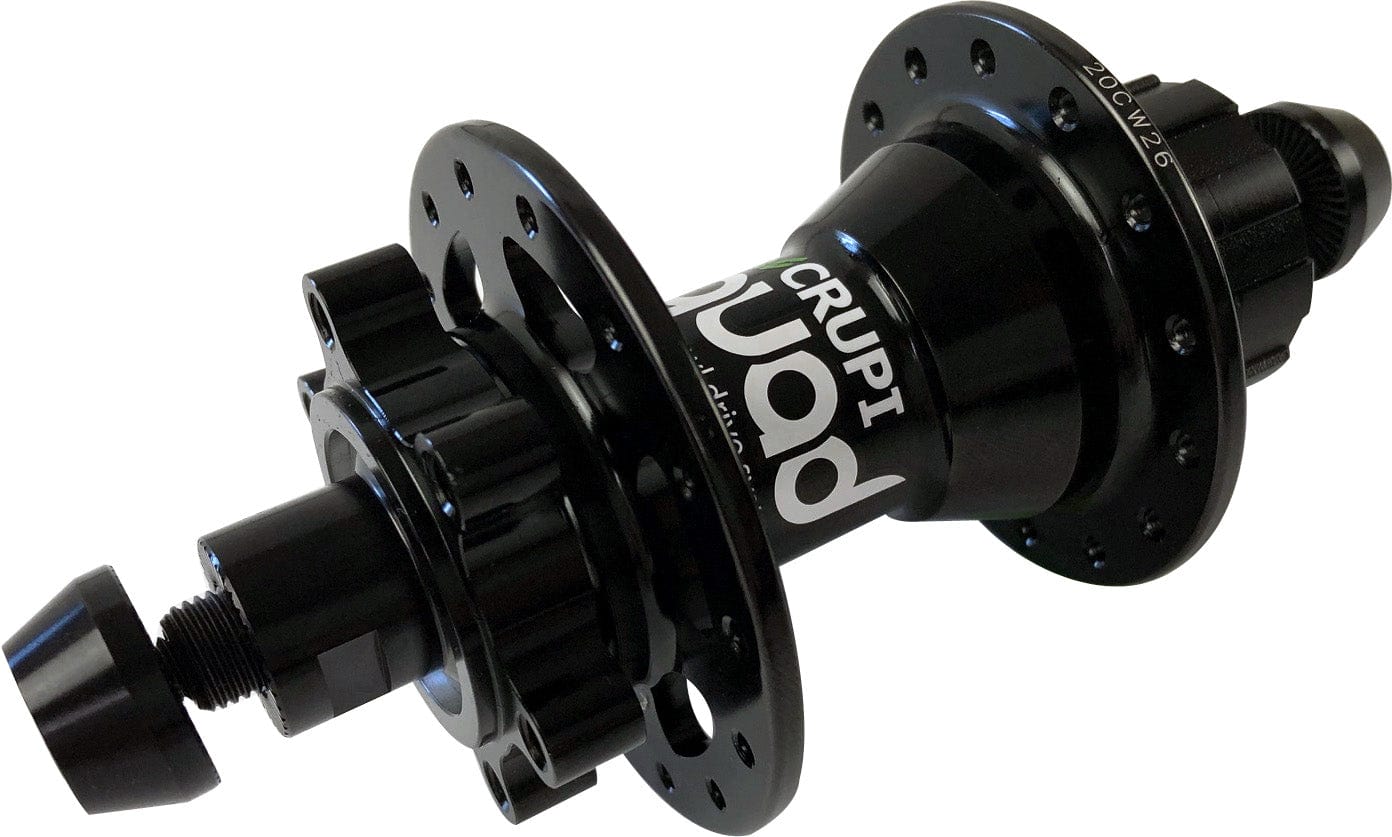

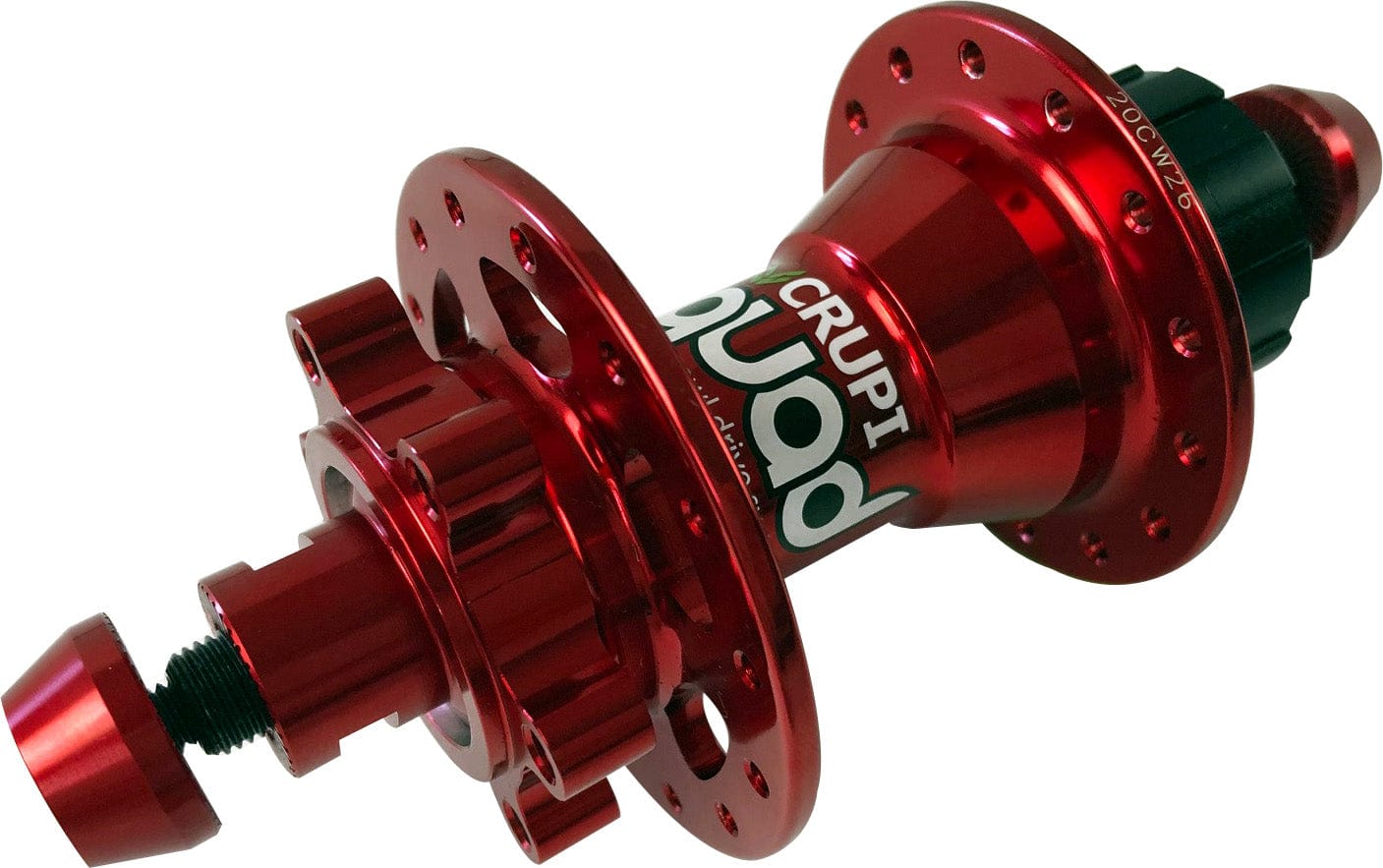

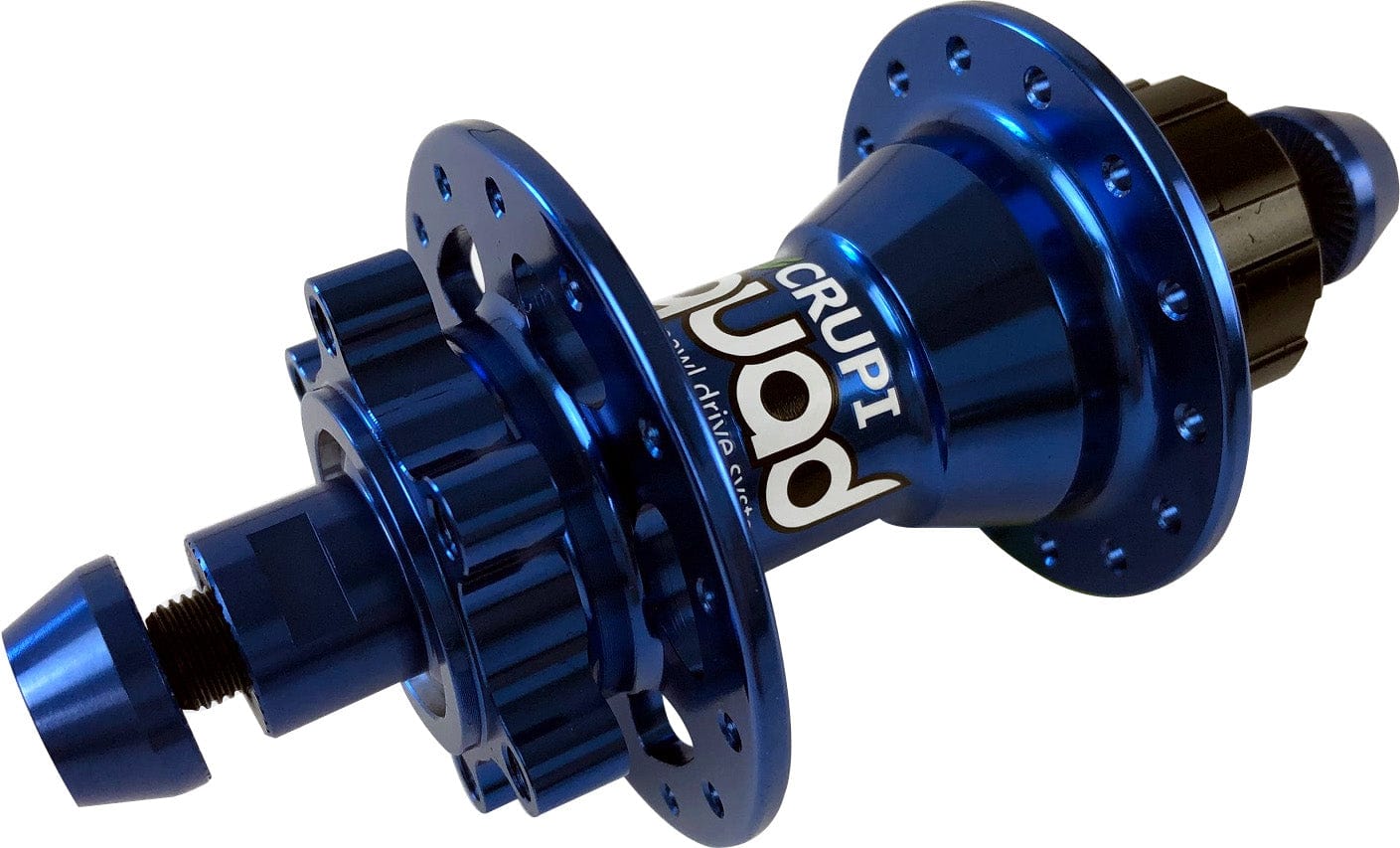

  • 28H Disc rear weighs: 10.8oz

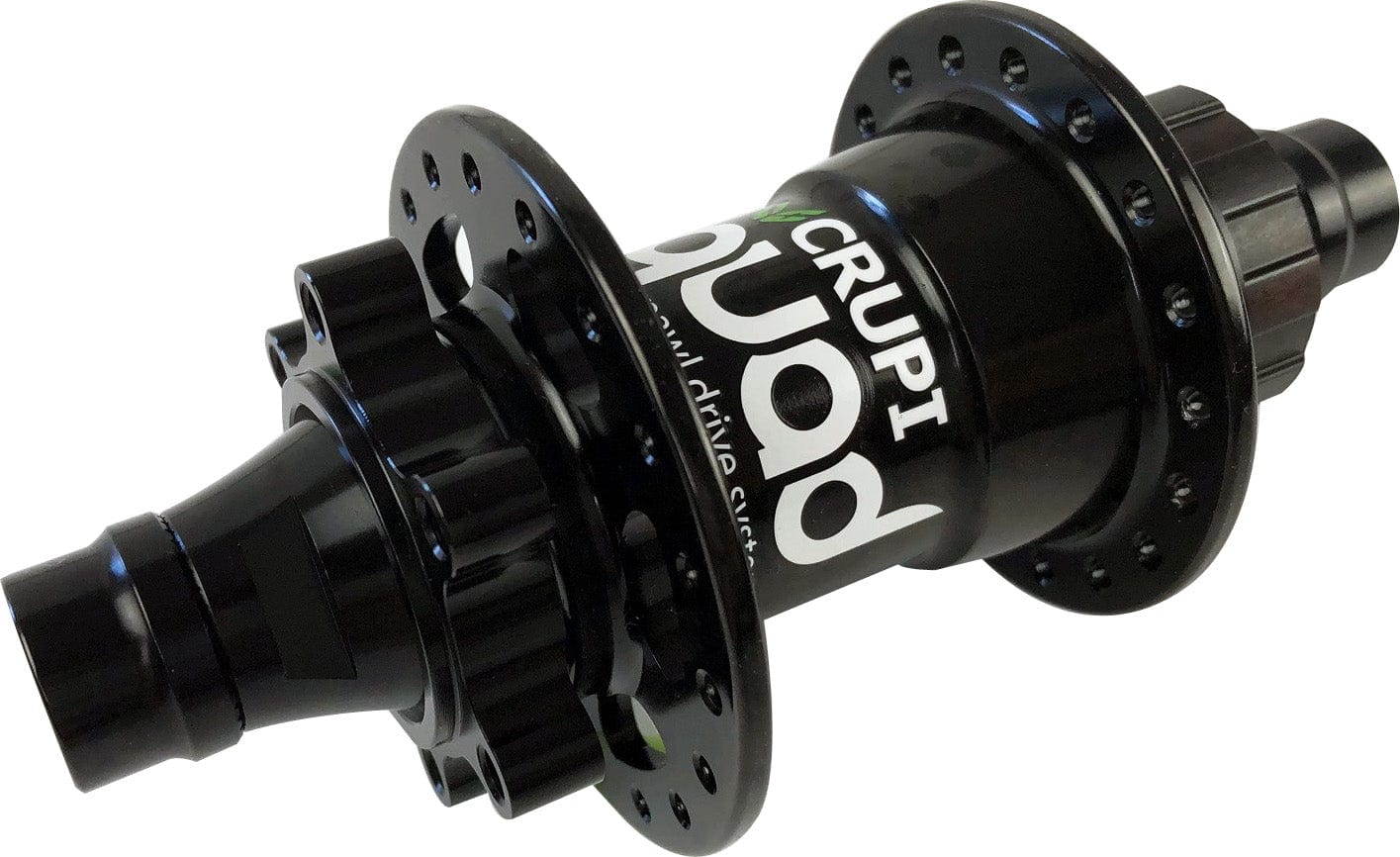

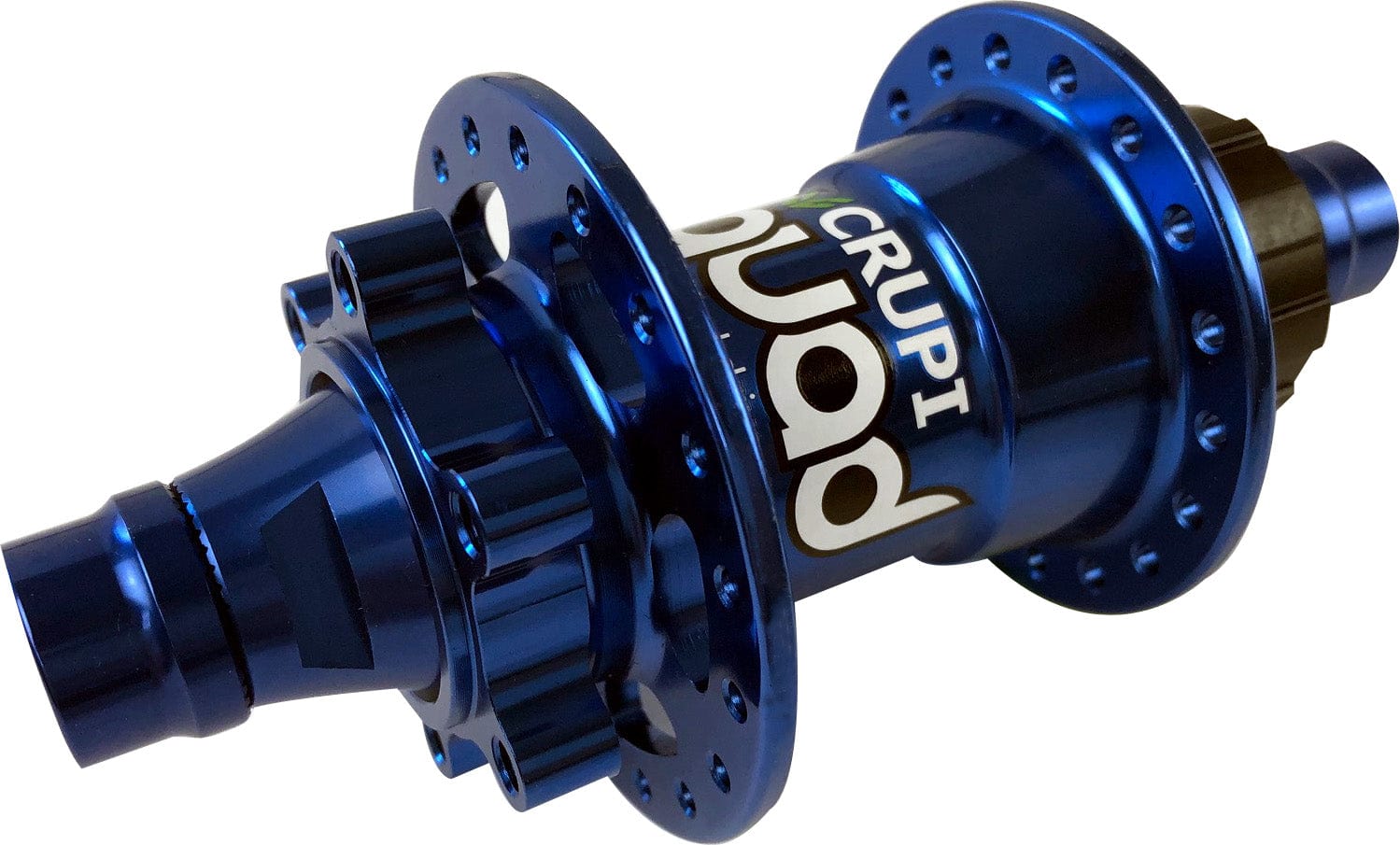

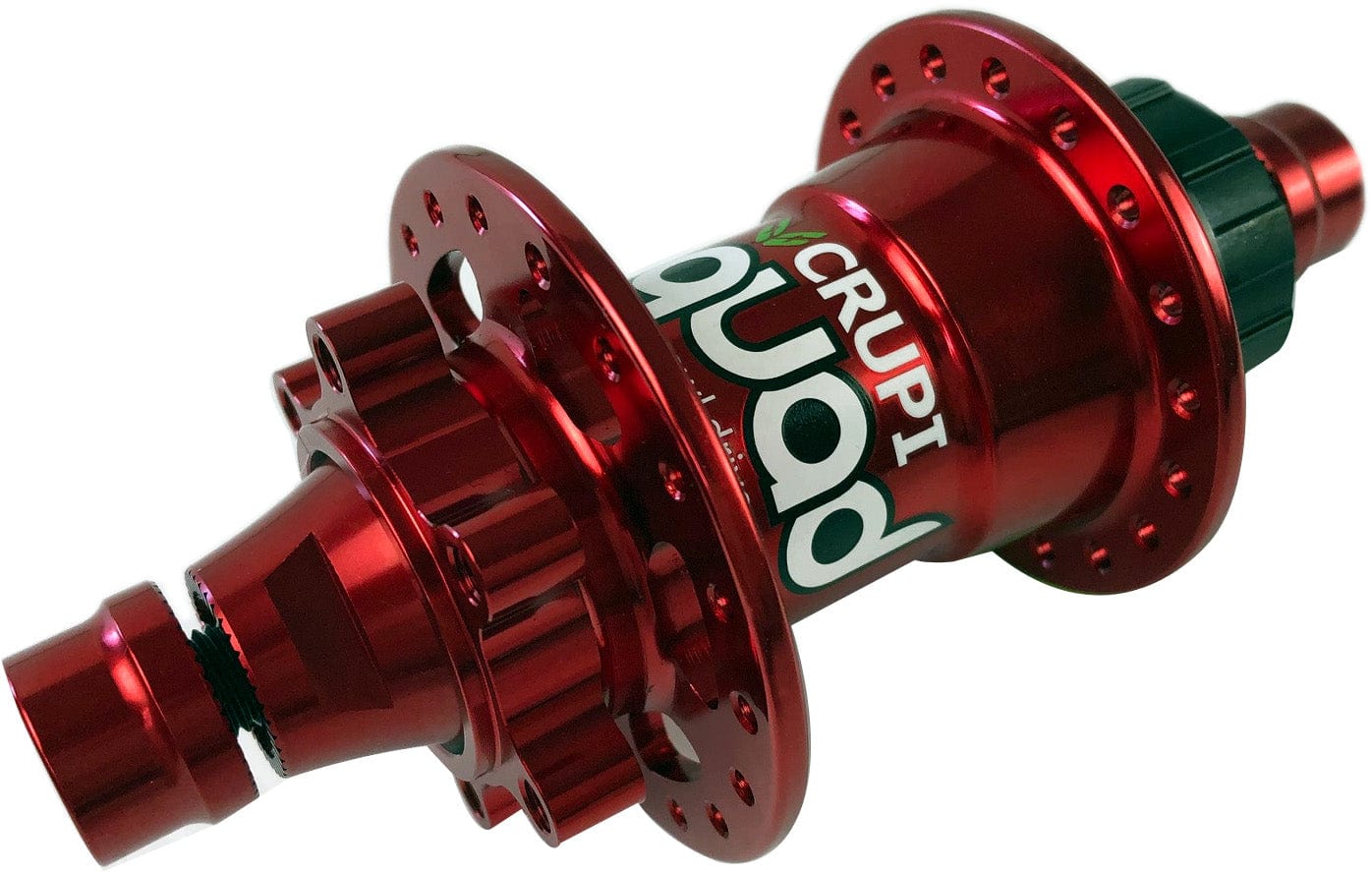

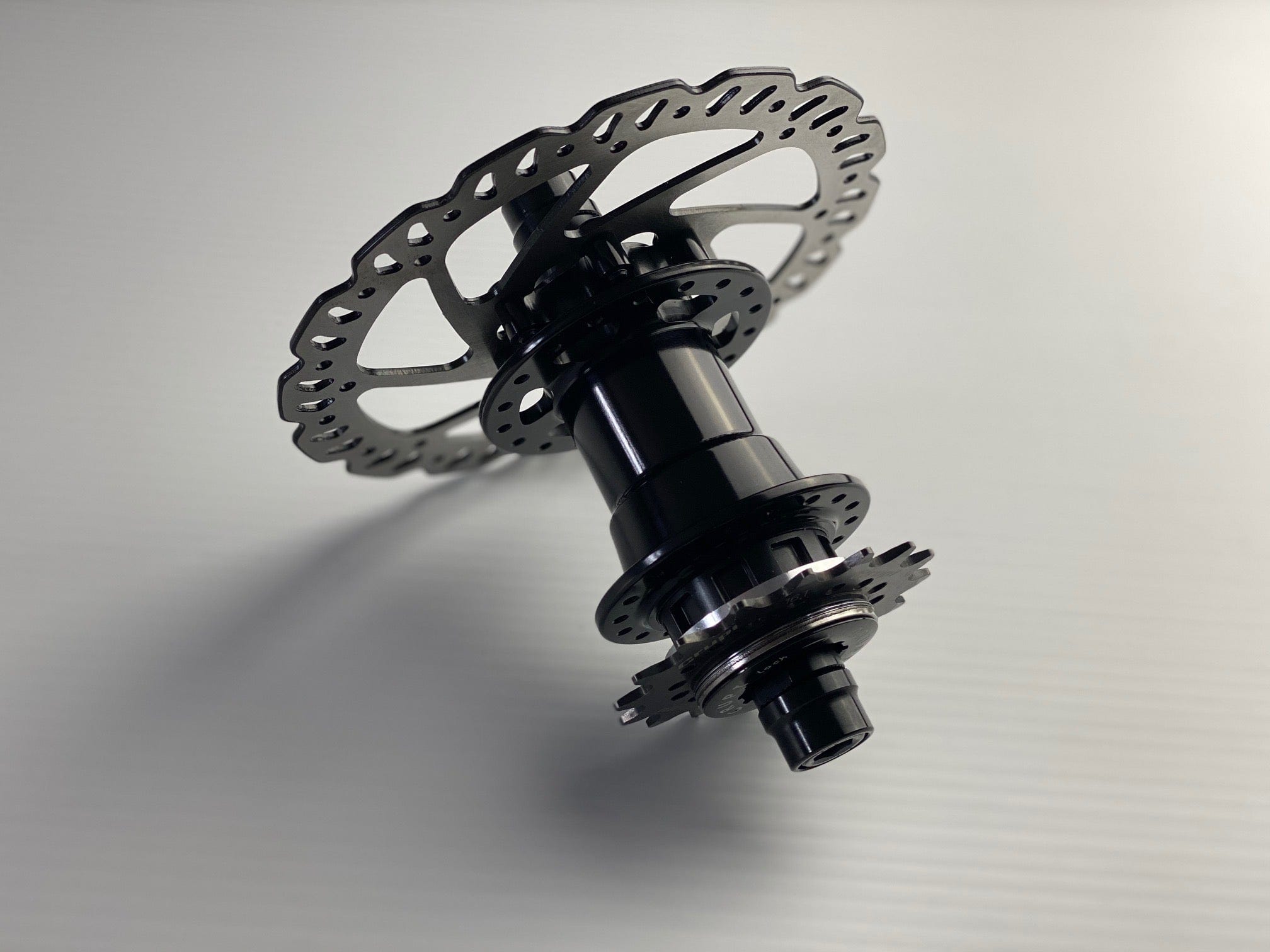

  • 36H Disc rear weighs: 14.95oz



Wheel Build Specs:
Flange Diameter for all 28H front hubs: 38mm
Flange Diameter for all 36H front hubs: 40mm

Drive Side Flage Diameter for all 28H & 36H Disc hubs: 51mm
Drive Side Center to Flange for all 28H & 36H Disc hubs: 25.5mm

Non-Drive Side Flange Diameter for all 28H & 36H Disc hubs: 58mm

Non-Drive Side Center to Flange for all 28H & 36H Disc hubs: 23mm
